|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Poly bag + Carton Box + Wooden Pallet|
|Delivery Time:||35 work days|
|Payment Terms:||T/T, L/C|
|Ice Quantity:||13~18kg/24h||Ice Storage Capacity:||1.1kg|
|Power Source:||Electricity||Voltage:||220V-240V/50Hz 110V/50/60Hz|
|Compressor:||National Famous Brand||Material:||Stainless Steel|
|Ice Making:||Flowing||Cooling Way:||Air-cooled|
|Automatic Grade:||Automation||Unit Structure:||Integral|
automatic ice machine,
compact ice maker machine

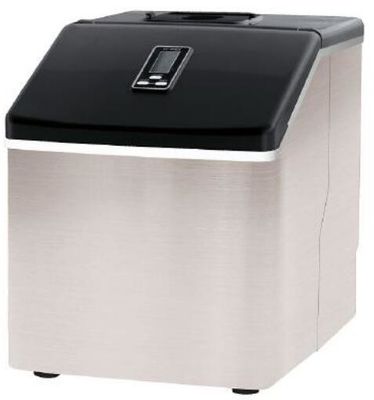

18Kg Stainless Steel Mini Ice Maker Machine , Potable Commercial Ice Maker Machine,Countertop Ice Maker Machine
More than 30 years professionally produce the high quality refrigerated products,export a lots all over the world every year. Famous brand compressor,stable excellent quality,working highly efficient in an energy-saving way.
We can supply a complete range of refrigeration equipment,including China best home refrigerator, chest freezer,beverage cooler and ice cream showcase, wine cooler, ice maker, cake showcase, kitchen refrigeration equipment, car refrigerator,absorption refrigerator and truck air conditioner etc..
This home/commercial mini ice maker / ice cube maker / ice machine is widely used in hospitals, schools, labs, supermarkets, food preservation, fishing refrigeration, medical applications, chemical and food processing industries,bakery,grocery,bar,club,cafes, convenience stores,catering place etc. And for frozen food,such as soft drink,beverage,wine, ice cream cake,meat,seafood and so on that's to maintain a fresh state.
Stainless Steel Full-auomatic mini potable ice maker machine/ice dispenser/ice cube maker/ice maker/ice machine
Home/commercial mini ice maker/compact ice maker machine
|Ice cube shape||Bullet||Bullet||Bullet||Square|
|Ice size||small or large||small,middle or large||Transparent|
|Water tank Storage(L)||2.2||3.2||4.5||2.2|
|Quantity of ice cube/cycle(pcs)||9||9||9||24|
|White/black/silver||SS Cabinet Black Plastic Top|
|Red or other color||USD8.00/colorful SS||/||/||/|
|MOQ||No MOQ for normal SS Cabinet,500pcs for colorful SS||No MOQ||No MOQ||No MOQ|
|Ice cube shape||Bullet||Bullet||Bullet||Bullet|
|Ice size||small or large||small or large||small,middle or large||small,middle or large|
|Water tank Storage(L)||2.2||2.2||3.2||4.5|
|Quantity of ice cube/cycle(pcs)||9||9||9||9|
|Red or other color||US$2.00||US$2.00||US$3.00||US$4.00|
|MOQ||No MOQ for white/black/silver,200pcs for red or other color|
Ice dipenser / compact ice maker:
|Ice dispenser||Mini icemaker||Colourful icemaker|
|Ice||Cresent||Cresent||Full dice/half dice/cresent|
Remark:Colourful keeps fashion front intelligent digital display with easy touch panel for ZBF-25C and ZBF-40C.
Free standing ice maker:
|Free standing icemaker|
|Ice||Full dice/half dice/cresent|
Undercounter Ice Maker:
|Ice||Full dice/half dice/cresent|
Big ice maker machine:
|Modular Ice Maker|
|Ice||Full dice||Full dice|
|Icehead packing size(mm)||650*700*640||855*700*640|
|Icebin packing size(mm)||680*910*1100||850*910*1100|
New design fashional ice maker:
|Ice||Cloudy ice (Ice never melt in storage bin)||Natural snow|
Commercial Refrigerator Full-Auomatic Ice Maker / Ice Making Machine / Cube Ice Maker Machine
1. All stainless steel inner design, unique style and strong,beautiful and noble.
2. Microcomputer control system, fully automatic, less failure.water, drainage, Ice-making fully automated, easy operation.
3. World famous brand compressor,low noise,energy-saying,high efficiency vertical ice tray, ice making fast.
4. Copper condenser and evaporator.
5. Water supply:automatic
6. Stop running without either power or water.
7. Excellent appearance.
8. Unique patented siphon drainage way can make the scale not be piled up and make the ice more crystal clear.
9. Ice cube is pure, hard, compact, crystal clear and slow melting, not easy to stick the group.
10. Ice making cycle are regulated by PCB board.
11. Polyurthane high density foam process without fluoride,high heat preservation.
12. Easy to move and convenient to use.Perfect for everyday use,in home,office,camping,cafes,restaurant bars etc.
1. the refrigerating machine placement
(1) the machine should be placed in the air circulation, safe and clean place.
(2) the machine should not be placed outdoor, unfavorable under direct sunlight and rain.Not near the heat source.
(3) the use of the machine environment cannot be lower than 5 ℃, no more than 38 ℃.
(4) around the machine should have enough space, especially the back not less than 250 mm.In order to machine the cooling.
(5) please adjust the machine at the bottom of the anchor bolt to ensure smooth placed level.
2. the installation of a water system
(1) please plug in accordance with local water source of drinking water standards.
(2) connected to the filter when necessary, in order to improve the standard of drinking water.
(3) the water supply system must meet the following conditions.
A. the lowest temperature 2 ℃, the highest do not exceed 38 ℃
B. water pressure the lowest 0.02 Mpa, the highest 0.8 Mpa
3. the installation of power supply
(1) the power supply must be consistent with the machine indicated on the nameplate.
(2) all lines must be in conformity with the national standard.
(3) must be reliable grounding, grounding wire must meet the electrical standards.
(4) voltage fluctuation may not exceed the rated voltage of plus or minus 10%.
1. ice making process
(1) must be checked before starting the automatic water supply device is normal, the tank to save water is reasonable (the machine factory has just the water level, the user can be reset).
(2) the plug in the power supply, ice making machine began to work, first of all, the pump running, the exhaust air pump has a short process) compressor started about two minutes later, into ice making machine.
(3) when to set the thickness of the ice thickness, ice plate probe began, electromagnetic valve start to work, water pump stop working, and the heat into the evaporator, about 1.5 minutes of ice.When I fall on the ice to the ice dampers inside out and open the magnetic reed switch.When magnetic reed switch closed again, the machine into the ice making process again.
(4) the compressor in the entire process of ice and ice off, don't stop.
(5) when water ice barrel for a full, magnetic reed switch cannot be automatically closed, the machine automatically stop working, and when taken enough ice, magnetic reed switch after reclosing time delay machine start after 3 minutes, back into the ice making process.
2. the thickness of ice bridge is
(1) the thickness of the ice bridge should be about 3 mm, between the probe and the evaporator international should be thicker than the actual thickness of the ice bridge 1.5 mm or so, mouth turn adjusting screw clockwise to increase the thickness of the ice bridge (screw rotation 1/3 circle ice bridge thickness change 1.5 mm).
(2) check the ice plate probe connections and bracket, should guarantee the free rotation after each process of ice can be returned to the right place.
The cause of the problem:
|The ice maker compressor discontinuous work:
1, the voltage is too low.Check the power supply.
2, the contact point contact is not good.
3, the system pressure protection.
4, compressor starter malfunction.
|Lack of ice production
1, the capillary or expansion valve block.
2, high moisture system with mild ice wall.
3, ice making machine water supply is not enough.
4, lack of refrigerant or leakage.
5, evaporator spoils.
|Wet ice ice is not hard
1, the environment temperature is too high especially in the summer will have a kind of situation.
2, maintenance of machine refrigerant added.
3, plate ice machine water water supply is too large.
4, press the power shortage.
|Machine but not out of the ice
1, the baffle plate of water or no water enough.
2, speed reducer failure or gear motor.
3, system fault ice wall.Dirty plugging, etc.
|Ice machine dew
2, connecting pipe is broken.
3, the coupling fault.
4, water level float valve failure.
|Too much noise
1, ice barrel fault ice skates.
2, brine concentration was not enough.
3, speed reducer failure.
4, fan fault.
5, noisy compressor.
|Water shortage alarm
1, filter plugging water joint.
2, water supply pipe wall.
3, drainage pump impeller or drainage pump failure.
1. Q: How about the quality?
A: We use all the best high quality raw material and professionally produce.
2. Q: Which style should we choose?
A: We have many models for your choice. Please tell us the application, materials, output and pressure all what you wanted, then we'll introduce.
3. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your correct requirements.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.
5.Q: What is the delivery time?
A: 2 weeks for sample model, 30 days for customized model. It depends for mass production.
6.Q: How about the package?
A: We have plywood case to protect the machine from damage during the long-distance delivery.
7.Q :How about the payment?
A: TT, 30% deposit + 70% before shipment.
