| Place of Origin: | China |
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS, ISO, ETL,EMC, CB, SASO |
| Model Number: | SC-48 90 130 |
| Minimum Order Quantity: | 150pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export carton with foam/ pallet |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300000pcs/year |
| Capacity: | 46L 90L 130L | Power Source: | Electricity |
|---|---|---|---|
| Temperature Control: | Mechanic | Type: | Display Cooler |
| Cooling System: | Direct Cooling | Defrost: | Manual |
| Temperature: | 0~10℃ | Refrigerant: | R600a/134a |
| Voltage: | 220V/50Hz 110V/60Hz | Door Number: | 1 |
| Door Type: | Folding Door | Function: | Freezing, Cold Storage |
| High Light: | beverage center refrigerator,beverage display cooler |
||

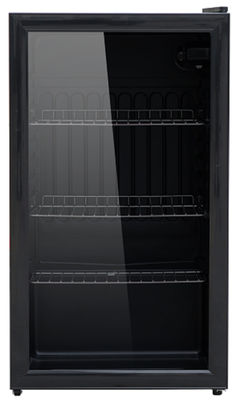

Upright multi mini commercial display cooler / mini beverage cooler/mini display freezer/upright mini fridge/mini beverage showcase
More than 30 years professionally produce the high quality small commercial refrigerator,export a lots all over the world every year. Famous brand compressor,stable excellent quality,working highly efficient in an energy-saving way.
We can supply a complete range of refrigeration equipment,including China best home refrigerator, chest freezer,beverage cooler and ice cream showcase, wine cooler, ice maker, cake showcase, kitchen refrigeration equipment, car refrigerator,absorption refrigerator and truck air conditioner etc.
Product Application:
This portable upright commercial refrigerator / beverage showcase /display cooler / beverage cooler is mainly used in bar, cafes,grocery,catteen,restaurant,supermarkets, hotel, home etc.And for chiller food,such as vegetable, fruit,drinks,dairy and so on that's to maintain a fresh state.
Mini beverage chiller:
SC-48 SC-90 SC-130
Mini beverage cooler / display cooler / soft drinks showcase:
| Mini Beverage Cooler | SC-48 | SC-90 | SC-130 |
| Net capacity(L) | 46 | 90 | 130 |
| Power(V~/Hz) | 110~240V/50~60Hz | ||
| Refrigerant | R600a/R134a | ||
| Noise | 40 | ||
| Color | white / black | ||
| Finishing(PCM/VCM) | Glass door | ||
| Adjustable Leg | Yes | ||
| Handle | Recessed | / | / |
| Key/Lock | Optional | ||
| Temp. Control | Mechanic | ||
| Defrosting | Automatic | ||
| Condenser | Inside | ||
| Interior Light | No | Yes | Yes |
| Width:Net/Packing(mm) | 450/510 | 470/520 | 505/567 |
| Depth:Net/Packing(mm) | 440/500 | 450/475 | 525/576 |
| Height:Net/Packing(mm) | 515/530 | 850/885 | 850/885 |
| N.W./G.W.(kg) | 18 / 20 | 24.5 / 26.5 | 24.5 / 26.5 |
| 40HQ(pcs) | 480 | 300 | 251 |
Display mini showcase cooler without canopy SC-48,SC-90 and SC-130
Feature:
1. Famous brand compressor
2. Famous brand thermostat
3. Auto defrost system
4. High efficiency EC Fans
5. Low noise,Low energy consumption
6. Tempered glass
7. Door locks standard
8. Cabinet material:Powder coated steel
9. Interior liner:ABS
10.One safety interior light in cabinet
11.Digital Thermostatic control
12.Forced-air system
13.CFC-free and polyurethane insulation
14.Sturdy PVC-coated wire shelves designed to hold any container upright
15.Heavy duty castor
16.Adjustable feet.
Frost free,fan cooling vertical single door ABS inner display beverage cooler/display freezer/glass door fridge
| Model | LC-220F | LC-300F | LC-350F | LC-230F | LC-310F | LC-360F |
| Net (lt) | 200 | 270 | 315 | 230 | 310 | 360 |
| Bottom surface | flat | stair | ||||
| Control/Temperature digital screen | Digital | |||||
| Cooling type/Frost free | Fan cooling/yes | |||||
| Cabinet Tem.℃ | 0~10 | |||||
| External dimension (mm) | 530*635*1645 | 620*635*1765 | 620*635*1935 | 530*635*1645 | 620*635*1765 | 620*635*1935 |
| Packing dimension(mm) | 585*665*1704 | 685*665*1824 | 685*665*2050 | 585*665*1704 | 685*665*1824 | 685*665*2050 |
| Material of inner cabinet | ABS | |||||
| Material of outer cabinet | Pre-painted cold-roll steel sheets | |||||
| Type of evaporator | copper fins | |||||
| Type of condenser | backside mash wire Or the steel one at bottom | backside mash wire | ||||
| Bottom condenser | Option | |||||
| Condenser fan motor | Option | |||||
| With interior fan | yes | |||||
| Insulation thickness(mm) | 40(average) | |||||
| Adjust feet and wheel | 2, 2 | |||||
| Adjustable shelves (pcs) | 3 | 3 | 4 | 3 | 3 | 4 |
| Internal light vert./hor. | Hor.*1 &Vertical*1 | |||||
| Door frame,handle material | PVC/with aluminum for option | |||||
| Glass type of door,(tempered)* | normal | |||||
| Weight net / Weight gross (kg) | 56/62 | 68/89 | 75/85 | 56/62 | 68/89 | 75/85 |
| 40' HQ | 98 | 73 | 71 | 98 | 73 | 71 |
| CERTIFICATION | CB,CE,ROHS | CB,CE,ROHS | CE,ROHS | CB,CE,ROHS | CB,CE,ROHS | CE,ROHS |
Direct cooling/semi-fan cooling single door ABS inner vertical beverage showcase
| Model | LC-220 | LC-300 | LC-350 | LC-230 | LC-310 | LC-360 |
| Net (lt) | 200 | 270 | 315 | 230 | 310 | 360 |
| Bottom surface | flat | stair | ||||
| Control/Temperature digital screen | Manual/not | |||||
| Cooling type/Frost free | Direct cooling/not | |||||
| Cabinet Tem.℃ | 0~10 | |||||
| External dimension (mm) | 530*635*1645 | 620*635*1765 | 620*635*1935 | 530*635*1645 | 620*635*1765 | 620*635*1935 |
| Packing dimension(mm) | 585*665*1704 | 685*665*1824 | 685*665*2050 | 585*665*1704 | 685*665*1824 | 685*665*2050 |
| Material of inner cabinet | ABS | |||||
| Material of outer cabinet | Pre-painted cold-roll steel sheets | |||||
| Type of evaporator | Bundy tubing | |||||
| Type of condenser | backside mash wire Or the steel one at bottom | backside mash wire | ||||
| Bottom condenser | Option | |||||
| Condenser fan motor | Option | |||||
| With interior fan | yes | |||||
| Insulation thickness(mm) | 40(average) | |||||
| Adjust feet and wheel | 2, 2 | |||||
| Adjustable shelves (pcs) | 3 | 3 | 4 | 3 | 3 | 4 |
| Internal light vert./hor. | Hor.*1 &Vertical*1 | |||||
| Door frame,handle material | PVC/with aluminum for option | |||||
| Glass type of door,(tempered)* | normal | |||||
| Weight net / Weight gross (kg) | 56/62 | 68/89 | 75/85 | 56/62 | 68/89 | 75/85 |
| 40' HQ | 98 | 73 | 71 | 98 | 73 | 71 |
| CERTIFICATION | CB,CE,ROHS | CB,CE,ROHS | CE,ROHS | CB,CE,ROHS | CB,CE,ROHS | CE,ROHS |
Showcase FAQ
What if the freezer is making abnormal noises?
Check following :
1.The freezer unleveled
2.Parts loose
3.Condenser blade touching loose wiring.
4.Refrigerant leaked out
5.Motor bearings worn out.
What if there is water on the floor under and /or around freezer?
Check following:
1.The drain hose outside of the drain pan
2.Leak in the drain pan
3.Excessive ambient humidity and door openings.
FAQ
1. Q: How about the quality?
A: We use all the best high quality raw material and professional produce.
2. Q: Which style should we choose?
A: We have many models for your choice. Please tell us the application, materials, output and pressure all what you wanted, then we'll introduce.
3. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your correct requirements.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.
5.Q: What is the delivery time?
A: 2 weeks for sample model, 30 days for customized model. It depends for mass production.
6.Q: How about the package?
A: We have plywood case to protect the machine from damage during the long-distance delivery.
7.Q :How about the payment?
A: TT, 30% deposit + 70% before shipment.
