Product Details:
Payment & Shipping Terms:
|
| Type: | Chest/Deep Freezer | Capacity: | 535L |
|---|---|---|---|
| Power Source: | Electricity | Door Number: | Two Doors |
| Door Type: | Sliding Door | Type Of Controller: | Mechanical |
| Defrost Type: | Manual Defrost | Compressor: | Famous Brand |
| Refrigerant: | R134a,R600a | Power Supply: | 220V-240V/50Hz 110V/50/60Hz |
| Temperature Type: | Single-temperature | Temperature: | 0~10℃ / <-18℃ |
| Function: | Cold Storage & Freezing | Door: | Top Open Sliding Glass Door |
| Inside Cabinet: | Embossed Aluminium | Outer Cabinet: | Pre-painted Steel |
| Handle: | Yes | Lock: | Yes |
| Dimension: | 1626*946*915mm | Basket: | Wire |
| Cooling System: | Static Cooling | Foaming Agent: | Cyclopentane |
| High Light: | energy efficient chest freezer,chest type deep freezers |
||
More than 30 years professionally produce the high quality small refrigerator,export a lots over the world every year. Famous brand compressor,stable excellent quality,working highly efficient in an energy-saving way.
We can supply a complete range of refrigeration equipment,including China best home refrigerator, chest freezer,beverage cooler and ice cream showcase, wine cooler, ice maker, cake showcase, kitchen refrigeration equipment, car refrigerator,absorption refrigerator and truck air conditioner etc..
Product Application:
This portable flat sliding glass door chest freezer,island freezer is mainly used in bar, supermarkets, hotel,restaurant,cateen etc.And for chiller food,such as vegetable, fruit,drinks,dairy,meat,seafood,ice cream etc. and so on that's to maintain a good state.
Sliding flat glass door island freezer / deep chest freezer / meat freezer / ice cream freezer / ice cream cooler / ice cream showcase
Feature:
1. Quick and deep freezing,famous compressor
2. Mechanical temperature control with indicating light
3. Environment-friendly technology,CFC free
4. Low energy consumption,low noise design
5. Fashion appearance
6. Lock and key
7. Four wheels for flexible move
8. Removable coated wire basket for easy food storage
9. Sliding flat heat-reflection ,safety glass doors with grip
10.Digital temperature displayer or digital temperature controller for option
11.White painted aluminium interior plate for option
12.Customized advertising sticker for option.

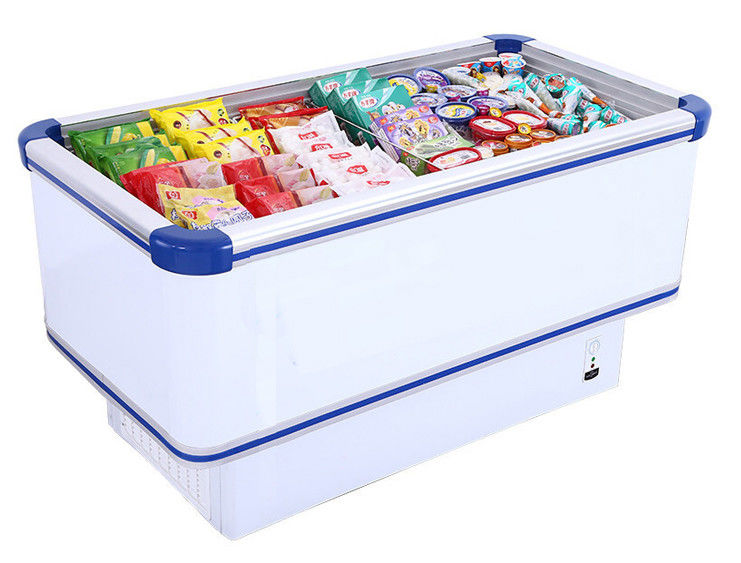

Supermarket Commercial Sliding Flat Glass Doors Island Freezer
| Model | SD-535 | SD-835 | SD-1035 |
| Net Capacity/ (L) | 535 | 835 | 1035 |
| Net Capacity/ (CB FEET) | 18.8 | 29.4 | 36.4 |
| Temp. Control | Mechanical | ||
| Interior Lamp | Yes | ||
| Door(Material/No.) | Heat-reflection glass door/2 | ||
| Exterior finish | Pre-painted steel | ||
| Interior finish | Embossed aluminium | ||
| Lock & Key | Yes | ||
| Basket(pcs),Material | 4,Wire | 6,Wire | 7,Wire |
| Caster(pcs) | 4 | 4 | 4 |
| Unit Dimension/W*D*H (mm) | 1626*946*915 | 2256*946*915 | 2346*1106*915 |
| Packing Dimension/W*D*H (mm) | 1702*1022*1106 | 2332*1022*1106 | 2380*1140*1106 |
| N.W./G.W.(kg) | 110/120 kg | 160/171 kg | 180/190 kg |
| Qty./40HQ(pcs) | 28 | 24 | 20 |
| CERTIFICATION | SASO ,CE,CB | SASO ,CE,CB | SASO ,CE,CB |
Packaging Details
1.plastic bag for cutting off dusty .
2.foam will be pack on glass door and anger for preventing to hit.
3.Cartoon .
4.Bottom Wooden package for big size.
Chest freezer FAQ
What if the freezer is not operating?
1.Power cord unplugged loose.
2.Faulty receptacle
3.Circuit breaker tripped,or blown fuse, or open supply circuit
4.Improper power supply applied to the freezer
5.Freezer switch at the front turned off.
6.Freezer in the 6minute start up delay mode.
7.Thermostat or electronic controller set for too warm temperature.
What if the freezer is making abnormal noises?
Check following :
1.The freezer unleveled
2.Parts loose
3.Condenser blade touching loose wiring.
4.Refrigerant leaked out
5.Motor bearings worn out.
What if there is water on the floor under and /or around freezer?
Check following:
1.The drain hose outside of the drain pan
2.Leak in the drain pan
3.Excessive ambient humidity and door openings
What if condensation forms on the gasket and /or freezer cabinet?
Check following:
1.Excessive ambient humidity and door openings.
2.The cabinet perimeter heater burned or disconnected
3.Door and /or gasket not closing properly.
What if condensation forms on the door glass?
Check following:
1.Excessive ambient humidity
2.Heated glass transformers not working or disconnected.
What if ice forming on the freezers interior?
Check following :
1.Drain tube heater burned out or not sufficient
2.Leak in the drain pan.
